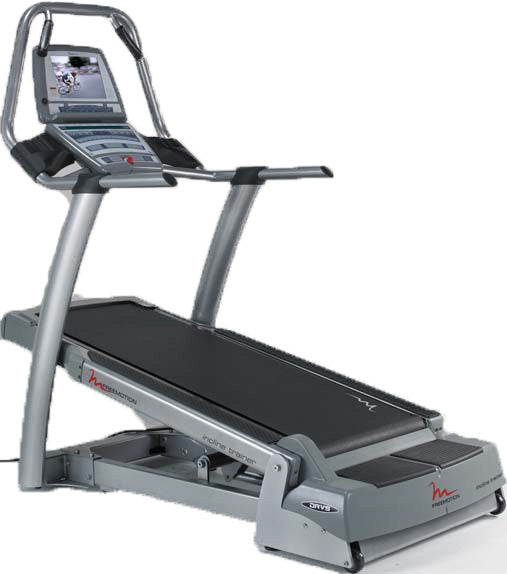

The FreeMotion Incline Trainer is driven by DRVS - Direct Rear Velocity System. DRVS is a one-of-a-kind, reardrive motor system that delivers quality performance with the most comfortable deck cushioning. By positioning the motor at the back of the treadmill, the running surface has a smooth, spacious feel while making it easy to access the motor during routine maintenance.
Motor – DRVS™, Direct Rear Velocity System
A self-cooling 5.0 HP high torque AC speed control motor, positioned in the back of the machine for a smoother running surface and easier maintenance.
By combining BioStride® urethane deck isolators and the DRVS motor system, users experience additional cushioning as the deck is able to give with every foot strike.
Adjust incline from -3 to 30% by simply touching a button or scrolling in 0.5% increments.
22" x 60" (56 cm x 152 cm), 2-ply belt requires no lubrication for years of smooth, consistent use.
Specifically designed for the Incline Trainer, this AC lift motor provides 1500 lbs. of lift force for smooth, consistent deck movement and stabilization.
Double coated with phenolic resin on both sides of the deck to last twice as long when flipped during general maintenance.
The unique DRVS system makes routine, preventative maintenance easy because the hood is positioned at the back of the machine.
Pulse information can be displayed on the console via contact sensors or Polar® compatible wireless telemetry.
Dimensions: Length 80” / 203 cm - Width 37" / 94 cm - Height 78" / 198 cm
Weight: 594 lbs. / 269 kg
Motor: 5.0 HP AC, DRVS motor system and controller
Speed range: 0.5 - 12 MPH (max. speed of 10 MPH at Declines less than 0%)
Incline range: -3 to 30%
Max. user weight: 350 lbs.
Power requirements: 120 Volts, 20 Amp Dedicated Circuit
Cable requirements: Coaxial cable for Workout TV console
In-club entertainment: Cardio Theater® & BroadcastVision® Compatible Networking capabilities: FitLinxx® Certifi ed Treadbelt: 22" x 60"
Display: Time, Segment Time, Pace, Distance, Calories, Watts, Heart Rate, % Max. Heart Rate, Speed, Incline, Vertical Feet37” / 94 cm
